Technical Specs Table
Description
Dimensions

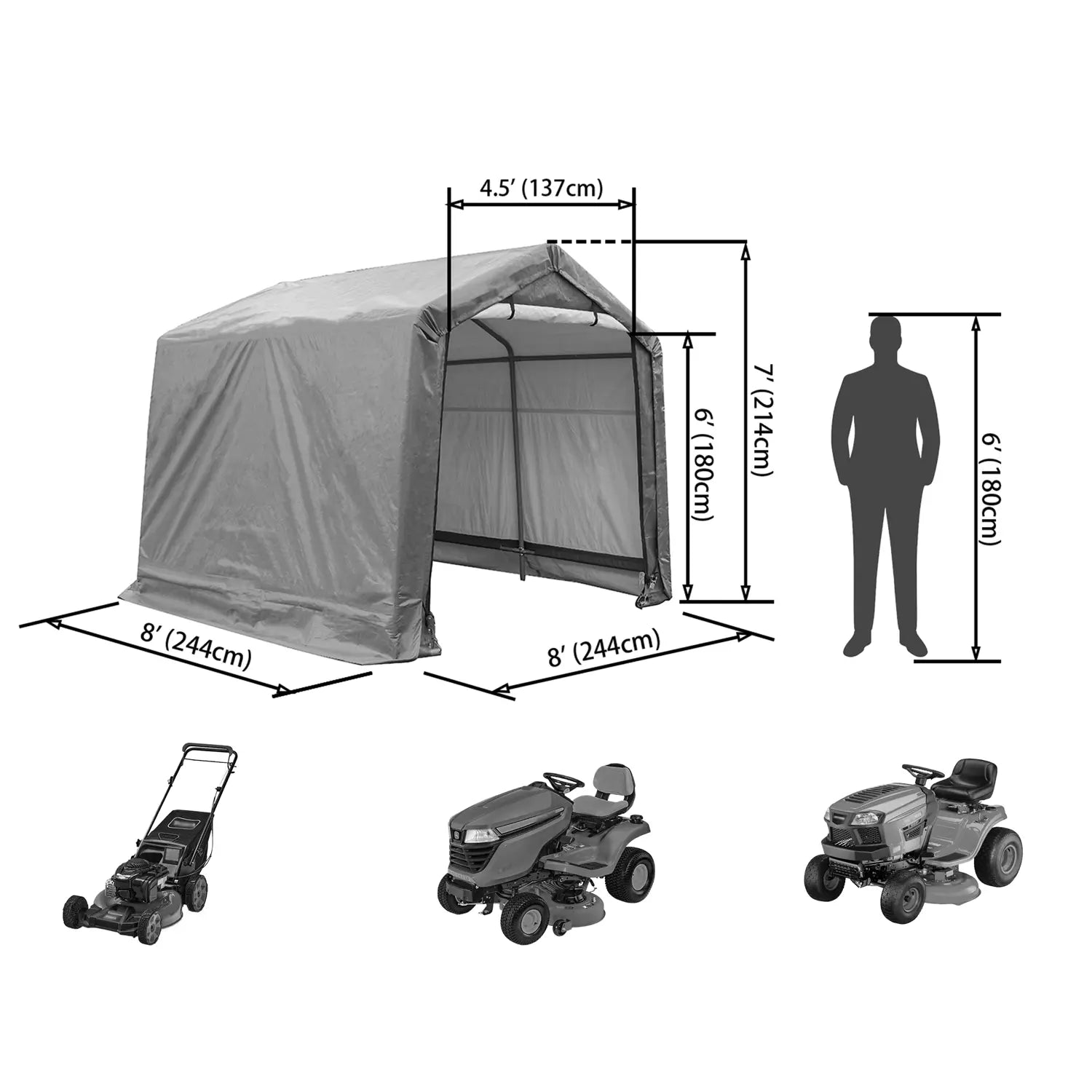

This shelter has an 8 ft × 8 ft footprint (2440 × 2440 mm) with a 7 ft (2140 mm) peak height, providing approximately 64 sq ft of covered floor area. The front door opening measures 4.5 ft wide × 6 ft tall (1370 × 1800 mm).
Frame & Structure

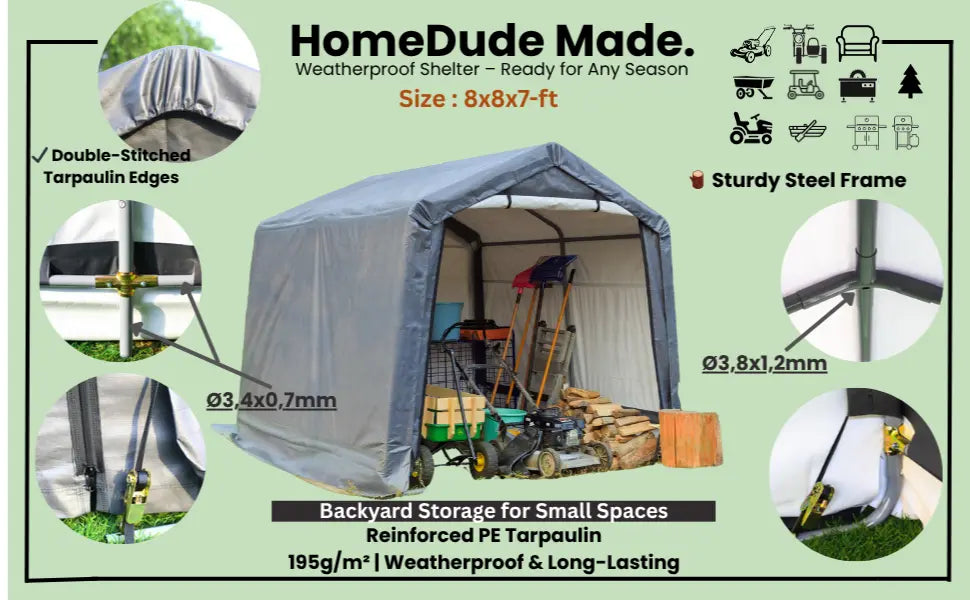

The frame is built from powder-coated steel throughout, finished in Silver Grey. Main upright, rafter, and cross rail tubes are 34 mm in diameter. The bottom cross rails are 28 mm diameter tubes with 0.7 mm walls. Bent corner legs use 34 mm diameter steel with 1.4 mm wall thickness for the base connections. The 3-Way Peak Connectors are 38 mm diameter steel with 1.2 mm walls.
Cover
The tarpaulin cover is a 195 g/m² 3-layer ripstop PE construction. Cover properties include waterproof material and UV protection. Cover color is Grey.
Enclosure & Access

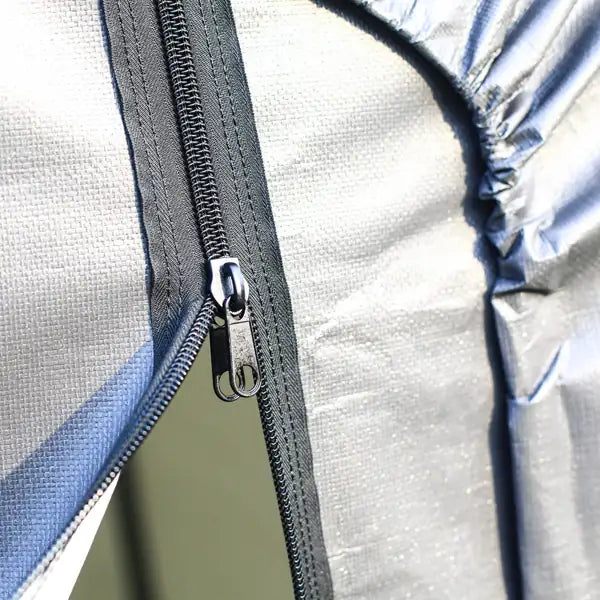

The cover system includes a roof tarp, a zippered front door panel (4.5 ft wide × 6 ft tall opening), and a solid back panel. Side panel configuration is not specified in the product documentation — buyers should inspect the product assembly guide for complete enclosure details.
Anchoring Kit

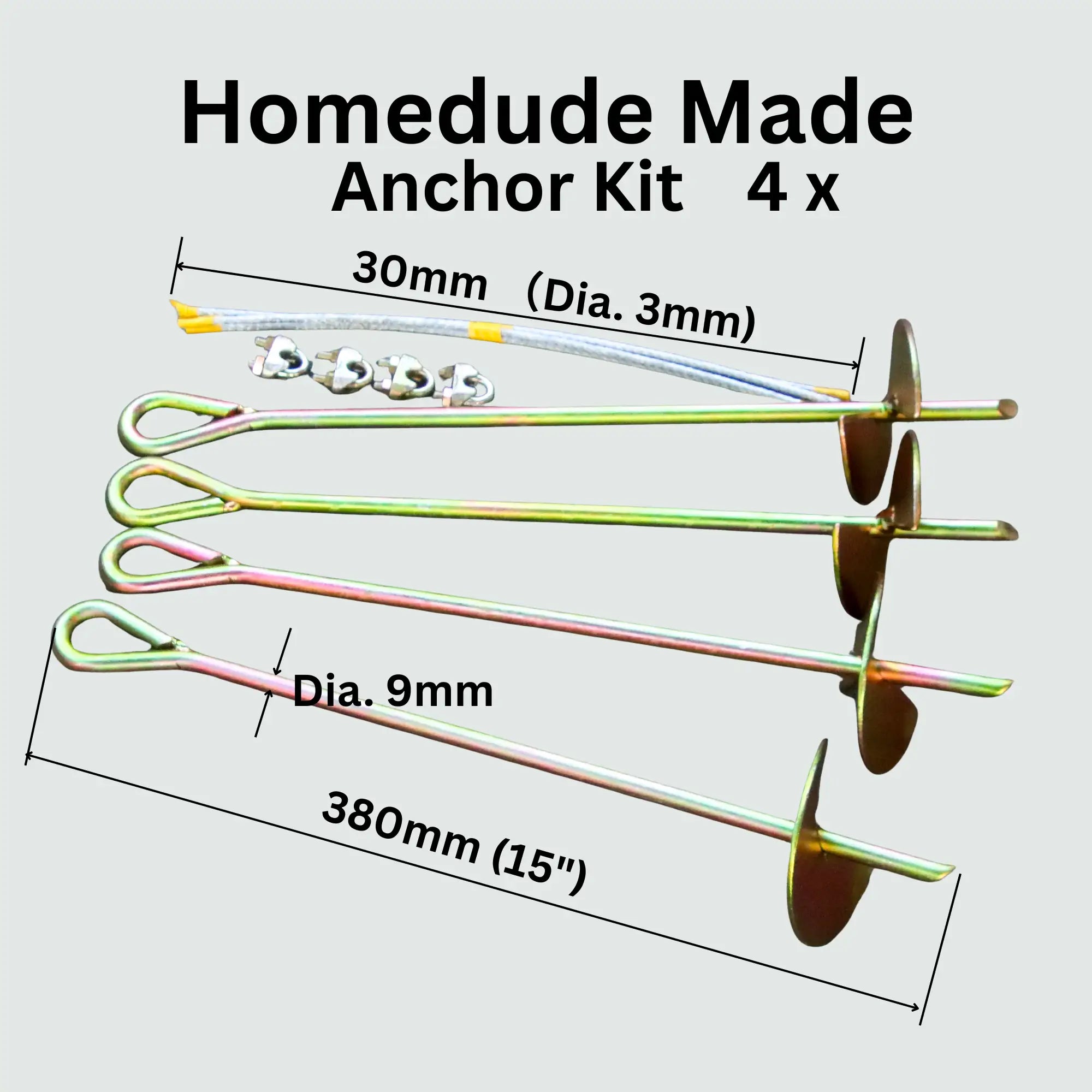

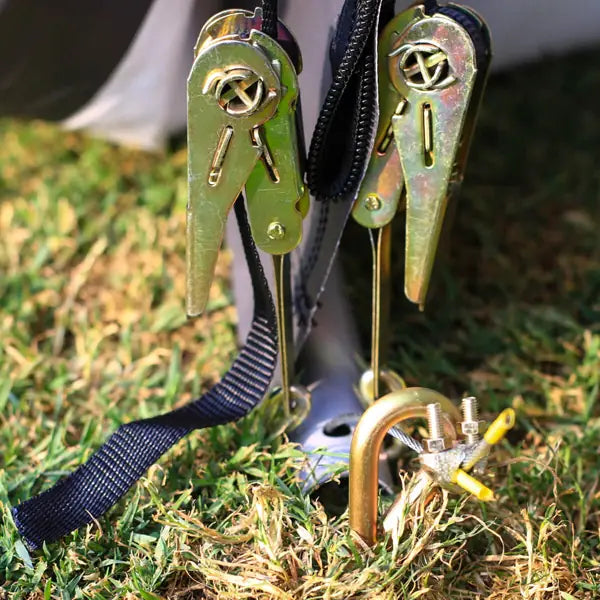

The shelter includes a full anchoring kit: 4 zinc-plated screw anchors, 4 cables (1/30 cm), 4 cable clamps, and 8 ratchet tie-downs. M6 hardware is also included: 8 M6×40 bolts, 8 lock nuts, and 8 washers. Assembly requires a rubber mallet and ladder (not included).
Shipping
All components ship in a single carton measuring 1210 × 420 × 190 mm at 32 kg.
Ideal For
Covered outdoor storage of seasonal equipment, garden tools, lawn gear, motorcycles, and similar items. Suitable as a portable, non-permanent covered structure in a backyard, driveway, or side yard.
Buyers intending to store vehicles or large equipment should verify the 8 ft × 8 ft footprint (2440 × 2440 mm) and the 4.5 ft wide × 6 ft tall door opening against their specific needs before purchase. This product is not sold with vehicle fitment guarantees or interior capacity ratings.
