Technical Specs Table
Description
Product Description
Hanging a door or setting a window on your own is a juggling act: the frame has to come up and sit level while you reach for the drill. These air wedges are made for that moment – leveling and aligning doors and windows during installation – and they help position door and window frames while you check level and fasten.
Size, Range & Load

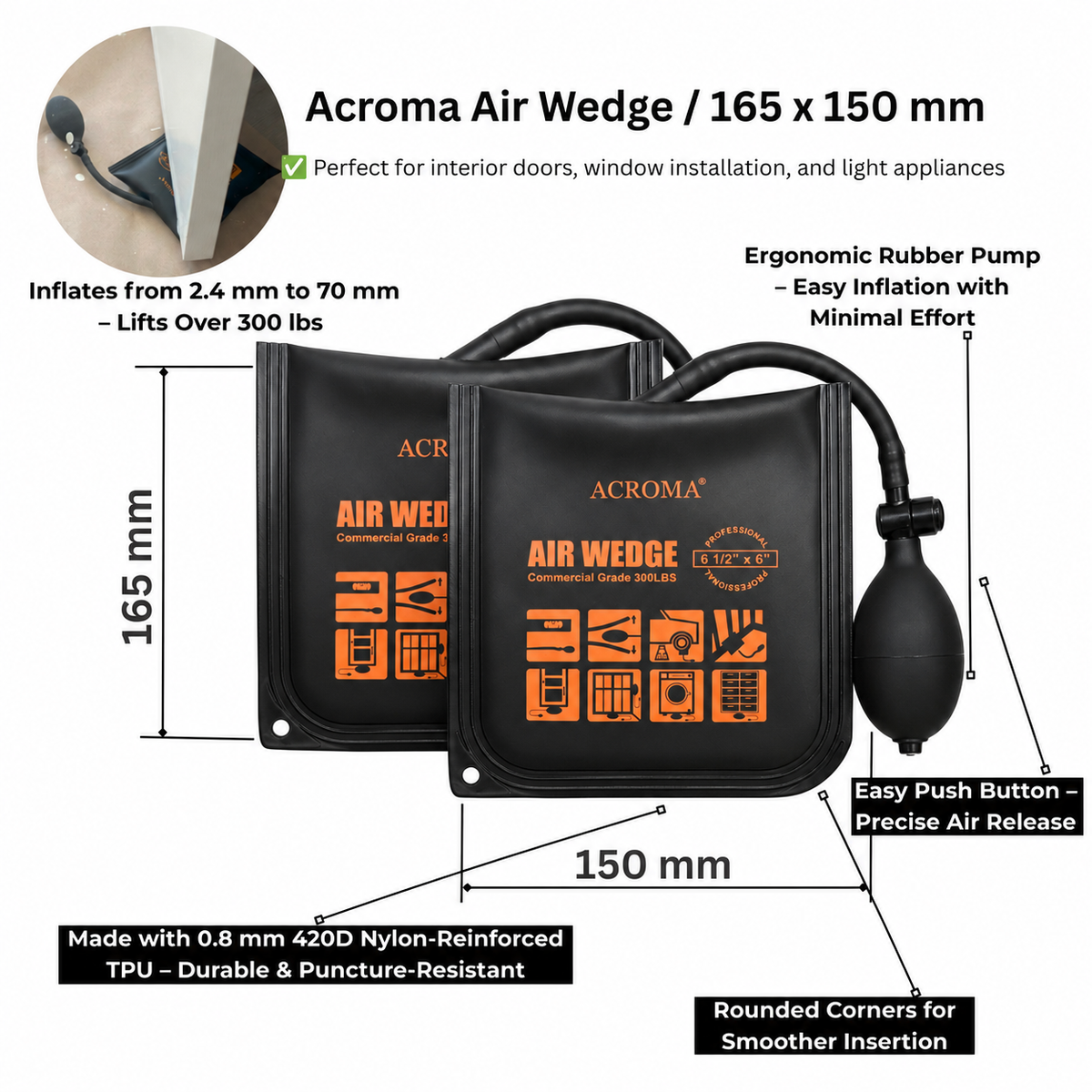

Each wedge inflates from 2.4 mm to 70 mm (approx. 3/32 in to 2-3/4 in), and the flat bag measures 165 × 150 mm (approx. 6.5 × 5.9 in). Each wedge has a load capacity of 300 lb (136 kg) – the rating applies to one wedge, not to the set combined.
Bag Construction

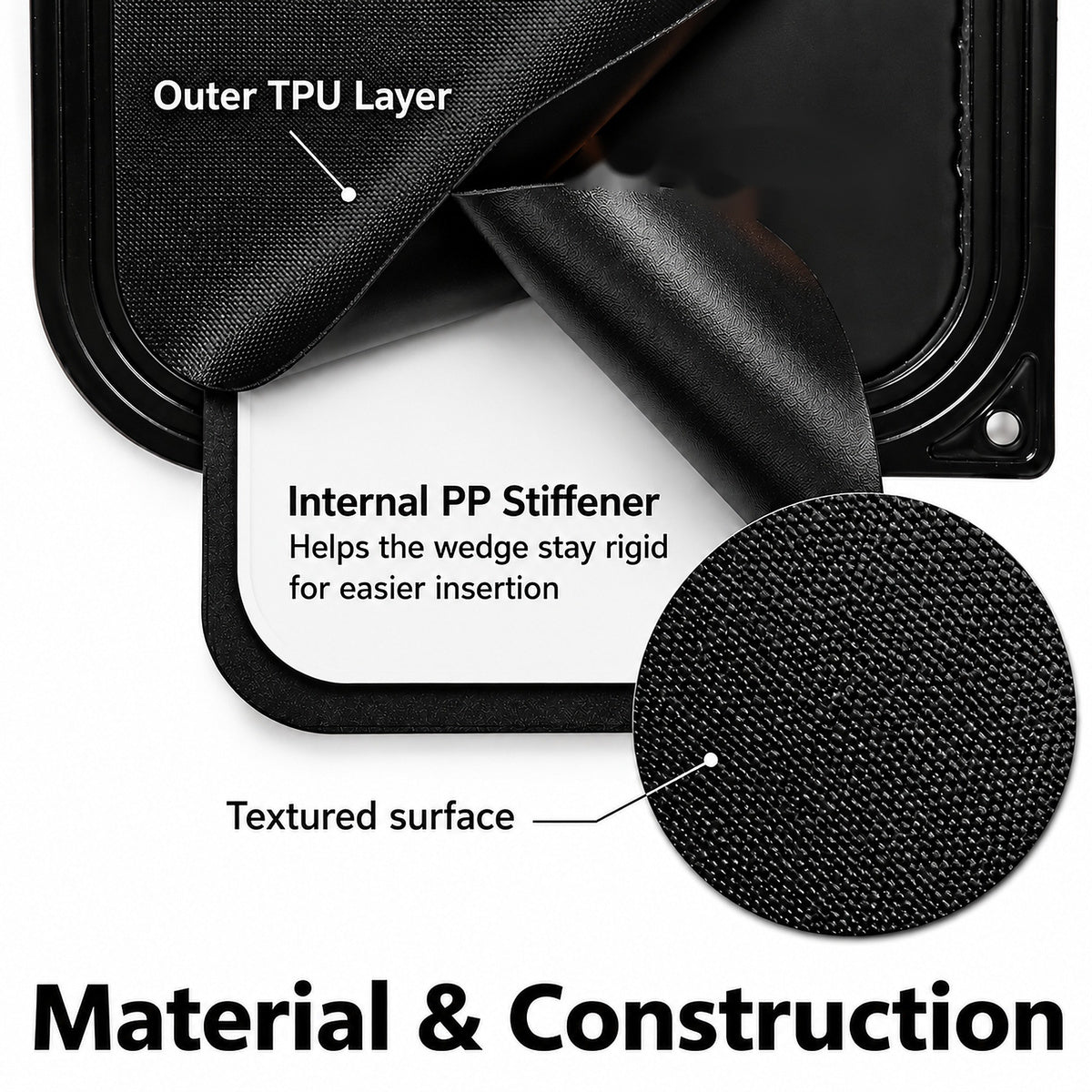

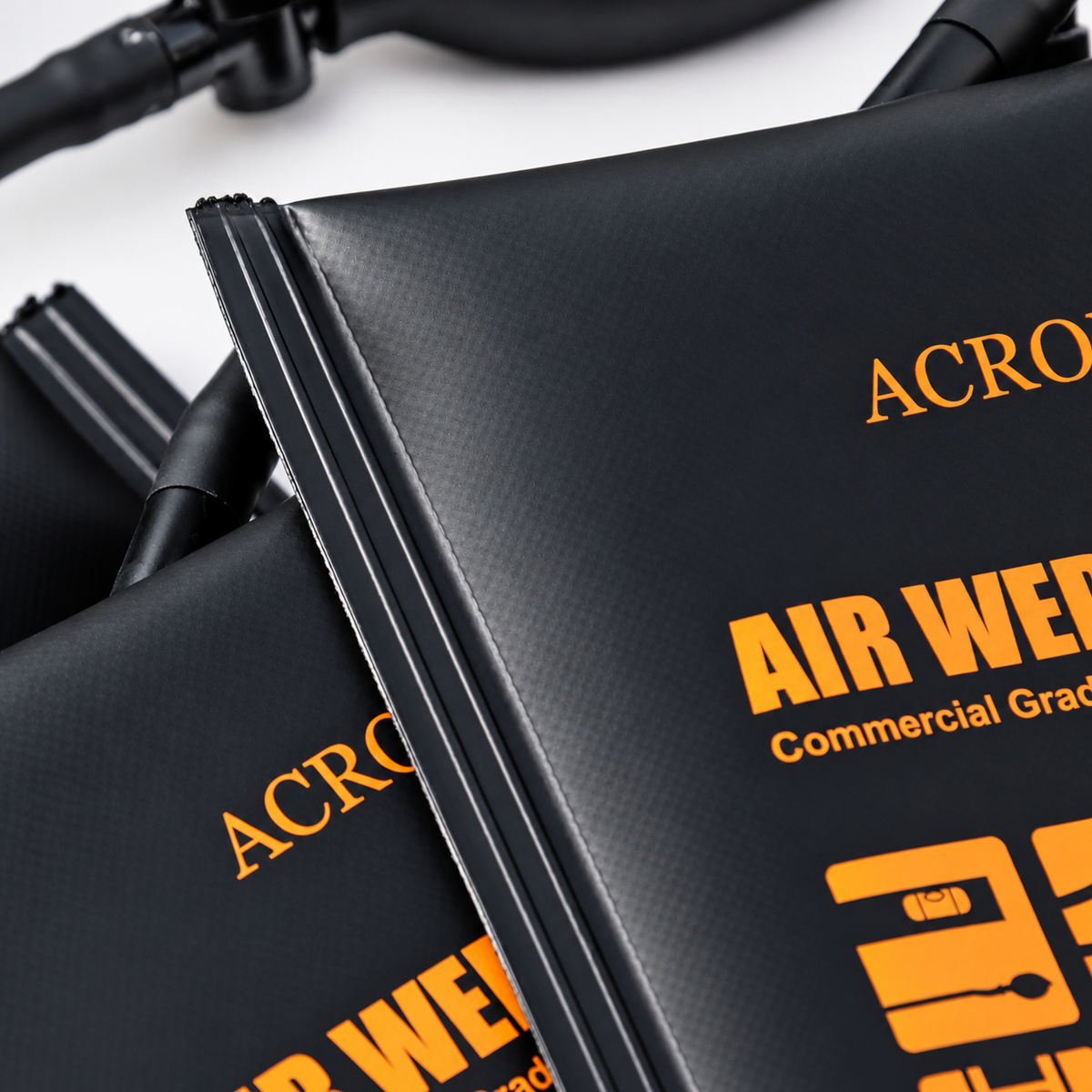

The bag is durable, puncture-resistant 420D nylon-reinforced TPU, 0.8 mm thick, built around an internal PP (polypropylene) stiffener plate. Its heat-sealed seams – TPU layers fused under heat and pressure, with no stitching – help hold air.
Pump & Valve

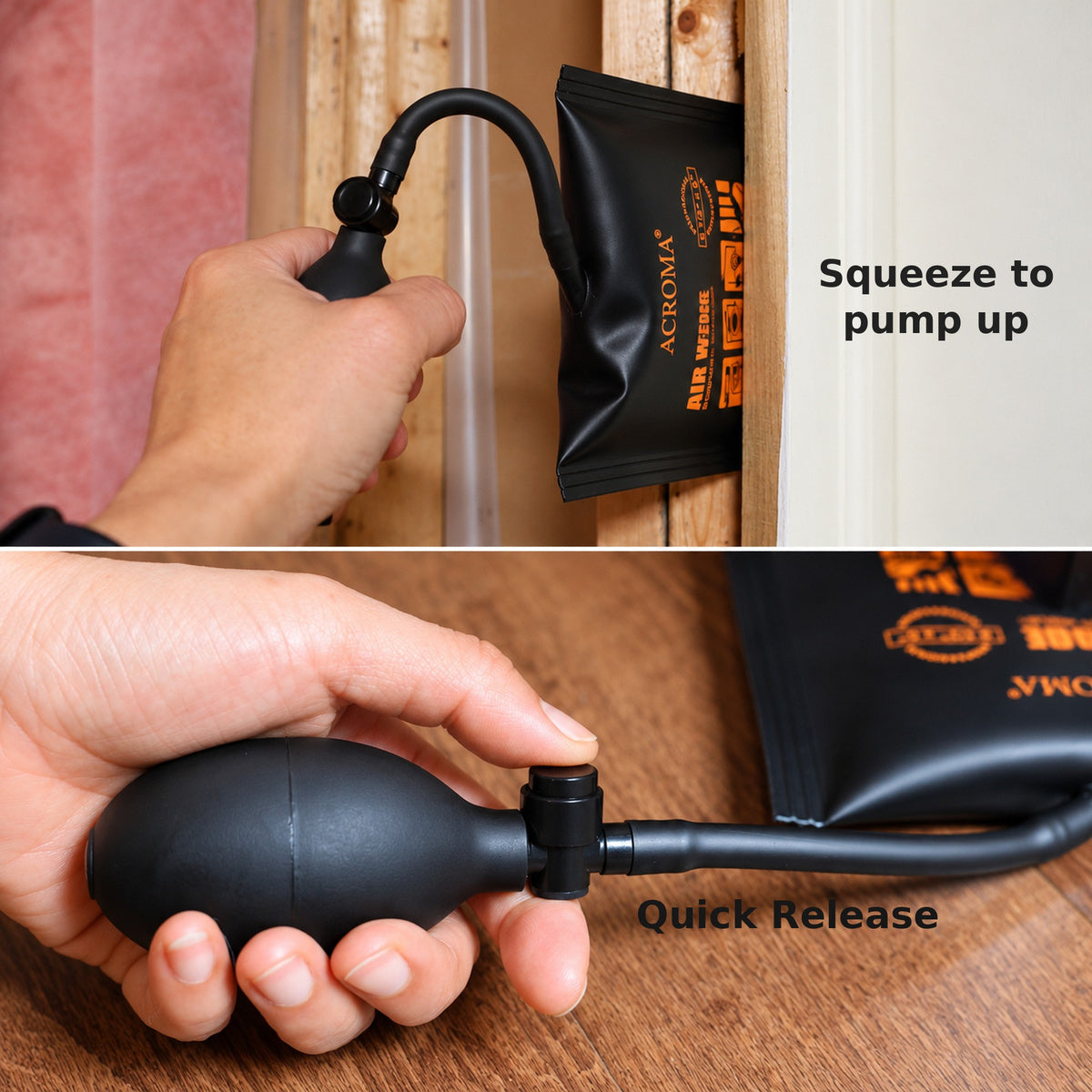

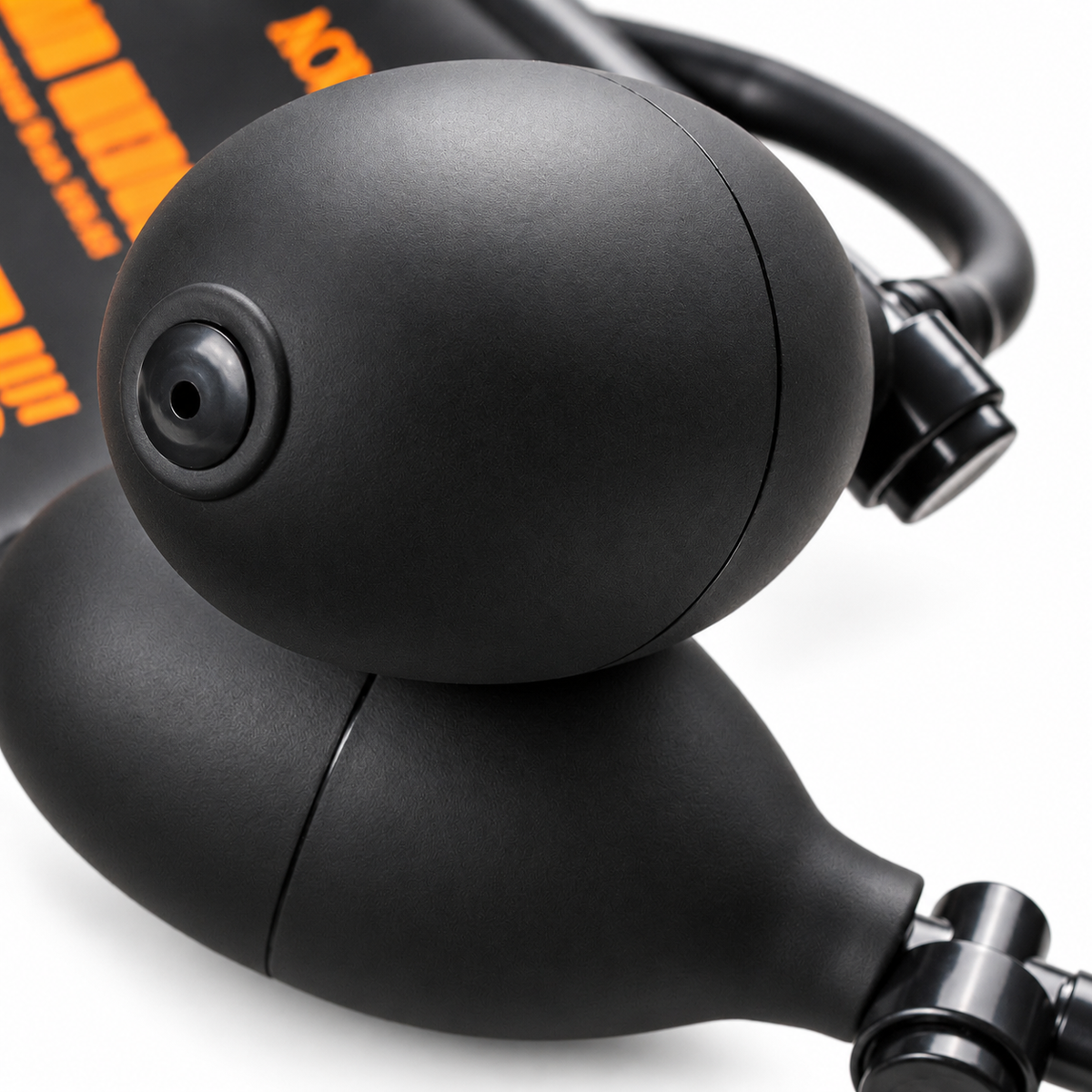

Every wedge is a single pre-connected unit – bag, ergonomic hand-squeeze rubber pump, connecting tube and quick-release valve – so there is nothing to assemble. Place a flat wedge under or beside the frame and squeeze the hand pump to raise it; press the quick-release valve to bring it down again.

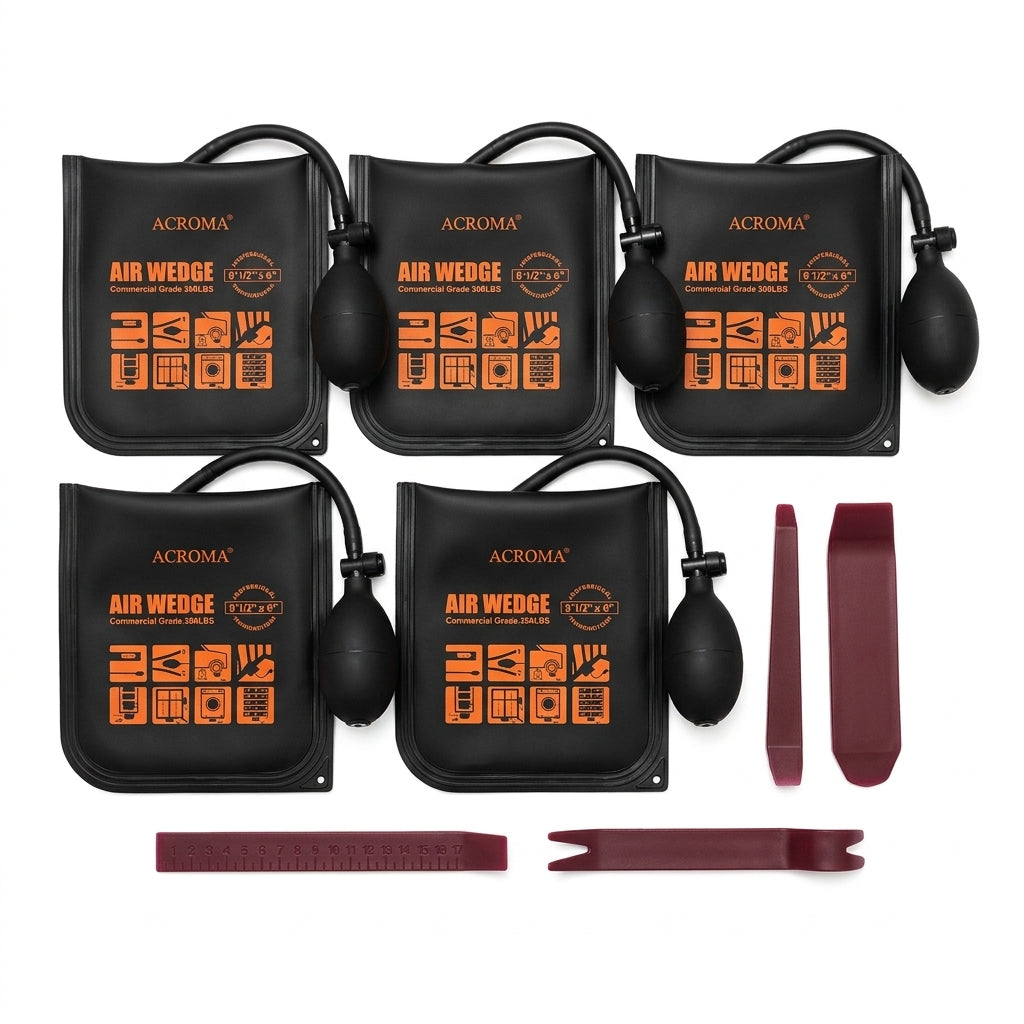

In the Box
- Air wedges: 5 (each with pre-connected bag, hand-squeeze rubber pump, connecting tube and quick-release valve)
- Plastic pry bars: 4, for small tasks
Price & Shipping
CAD 34.99 for the set of 5 air wedges – about CAD 7.00 per wedge. Free shipping on orders over CAD 50, to all of Canada, with delivery in 2–5 business days.

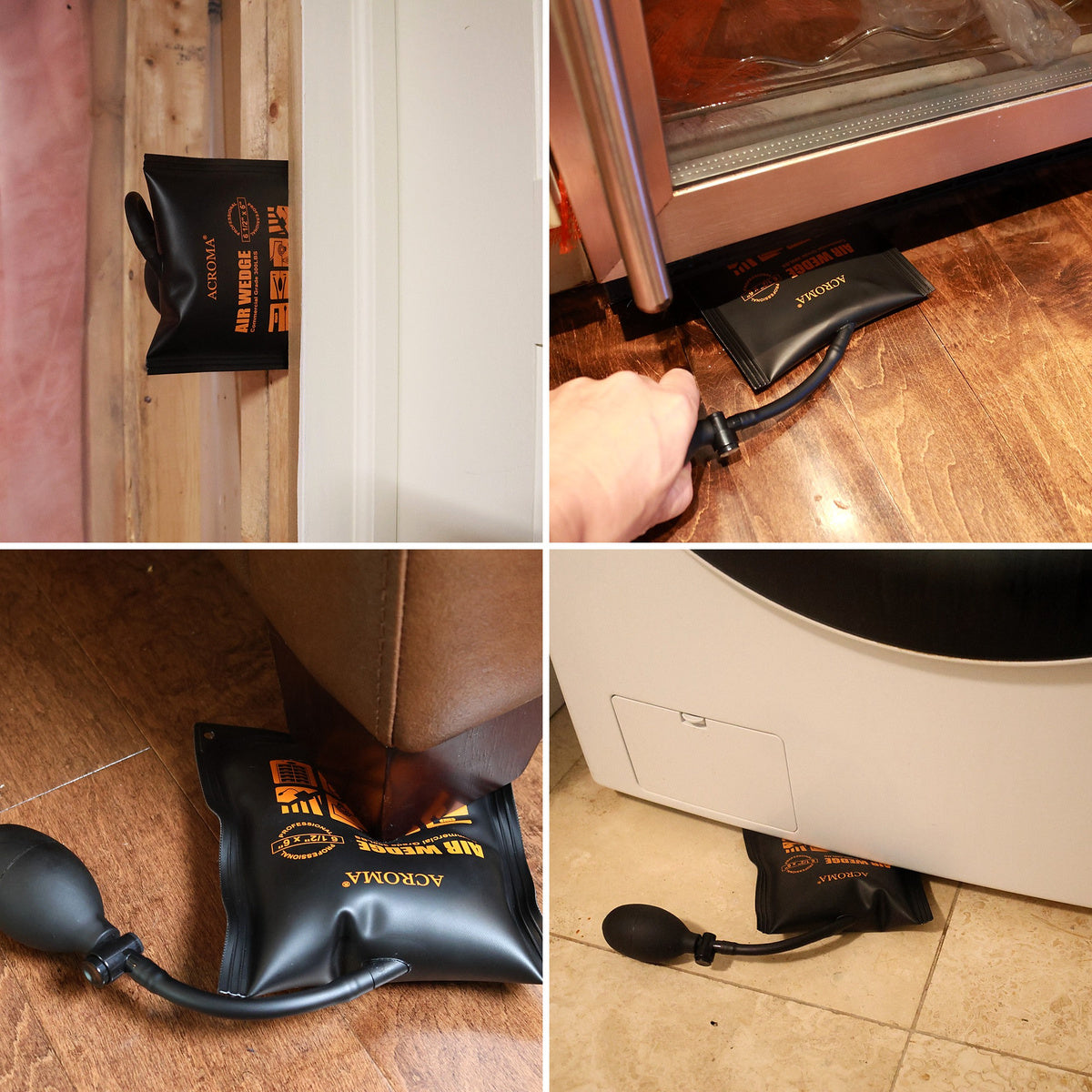

Ideal For
- Leveling and aligning doors and windows during installation.
- Helping position door and window frames while you work on your own and check level before fastening.
- Before you buy, check your gap against the verified range: each wedge inflates from 2.4 to 70 mm, and the flat bag is 165 × 150 mm. This is an intended use, not a fit guarantee.
Specifications
General
| Specification | Value |
|---|---|
| Brand | Acroma |
| Model | 109-0501 |
| Product type | Air Wedges |
| Load capacity | 300 lb (136 kg) per wedge |
| Colour | Bag black · pump black |
| Assembly | None required – pump, tube and valve pre-connected |
Dimensions
| Specification | Value |
|---|---|
| Flat bag size | 165 × 150 mm (approx. 6.5 × 5.9 in) |
| Inflation range | 2.4–70 mm (approx. 3/32 in to 2-3/4 in) |
| Net weight | 0.65 kg (approx. 1.43 lb) |
Materials
| Specification | Value |
|---|---|
| Bag body | 420D nylon-reinforced TPU |
| Bag thickness | 0.8 mm (approx. 0.03 in) |
| Internal stiffener | PP (polypropylene) plate |
| Seams | Heat-sealed, no stitching |
| Pump | Hand-squeeze rubber pump, one per wedge |
| Valve | Quick-release (press to release) |
| Pry bars | Plastic |
Packaging
| Specification | Value |
|---|---|
| Box | 1 colour box, 215 × 187 × 122 mm (approx. 8.5 × 7.4 × 4.8 in) |
| Packaged weight | 0.7 kg (approx. 1.54 lb) |
