HomeDude 10 x 20 ft Carport Shelter – 150 g/m² waterproof cover & steel frame

Waterproof ripstop cover | UV protection | Front zipper access | Anchoring kit included
Save $30.00
HomeDude SKU: 103-1105-150
A 10x20 covered shelter for vehicle, equipment, and seasonal outdoor storage, available in multiple cover-weight and color options.
Price:
$459.99 CAD $489.99 CAD
Ships from Oakville
Free 30-Day Returns
2-Year Warranty

Technical Specs Table

Technical Specifications
Assembled Dimensions 10 × 20 × 8 ft (3055 × 6094 × 2430 mm)
Assembled Weight 128 lbs
Material Alloy Steel & PE Tarpaulin
Total Height 8 ft | 2.4 m

Description

 Dimensions

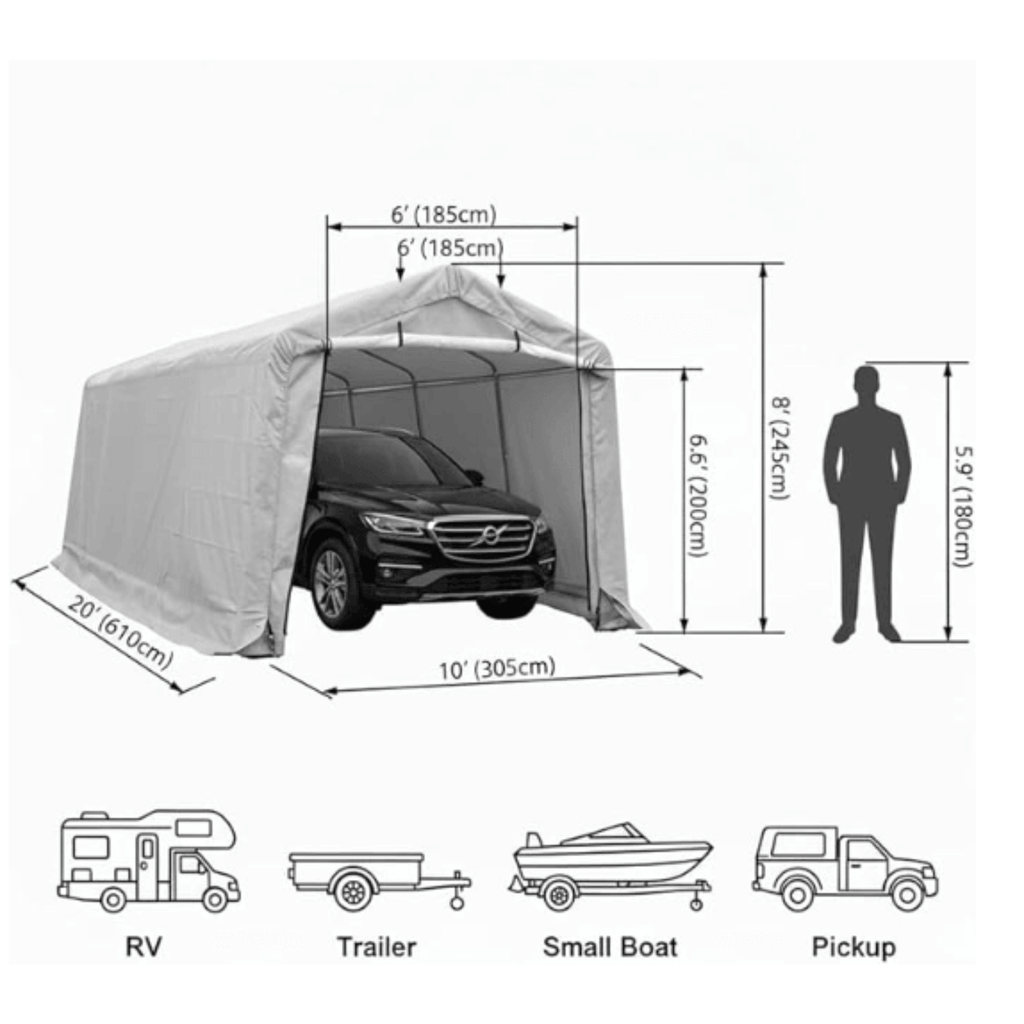

The shelter spans a 10 ft × 20 ft footprint (3055 × 6094 mm) with an 8 ft peak height (2430 mm). The front zipper door panel opens to 6 ft wide × 6.6 ft high — designed to allow access for vehicles and large equipment. Buyers should verify these dimensions against their storage requirements before purchase.

Frame & Structure

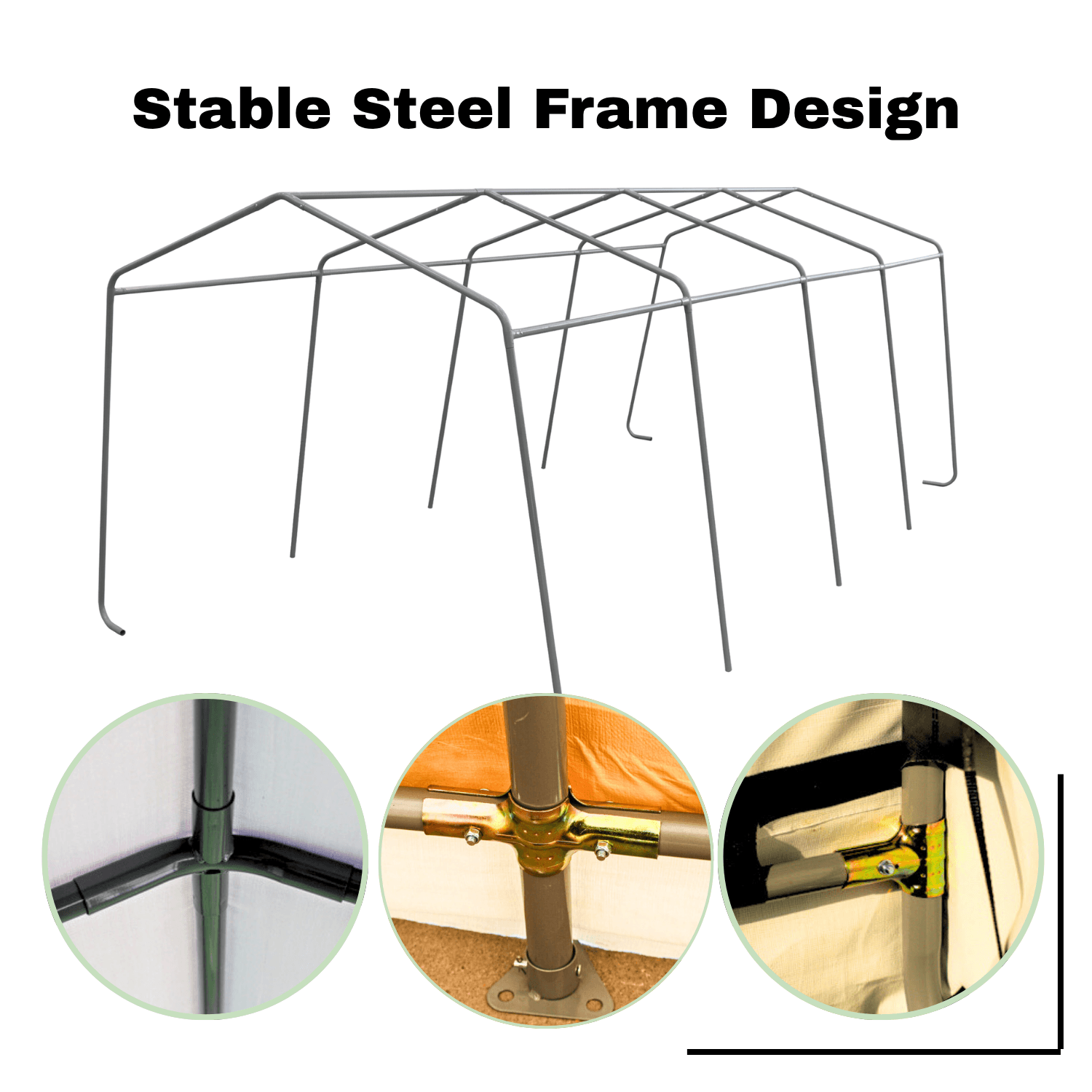

The frame is built throughout with steel tube components, powder coated in Outdoor Silver Gray (color code HG-8180C). Main structural leg and rafter tubes are 34 mm in diameter. Connectors and clamps are 38 mm diameter steel tube with 1.2 mm wall thickness. Foot plates are 1.5 mm steel plate construction. Connector and hardware fasteners throughout are zinc plated.

Cover
The cover is a 150 g/m² (150 gsm) 3-layer construction with waterproof properties, UV protection, and ripstop reinforcement. The cover package includes a roof tarp, a front zipper door panel, and a back panel.

Enclosure & Access

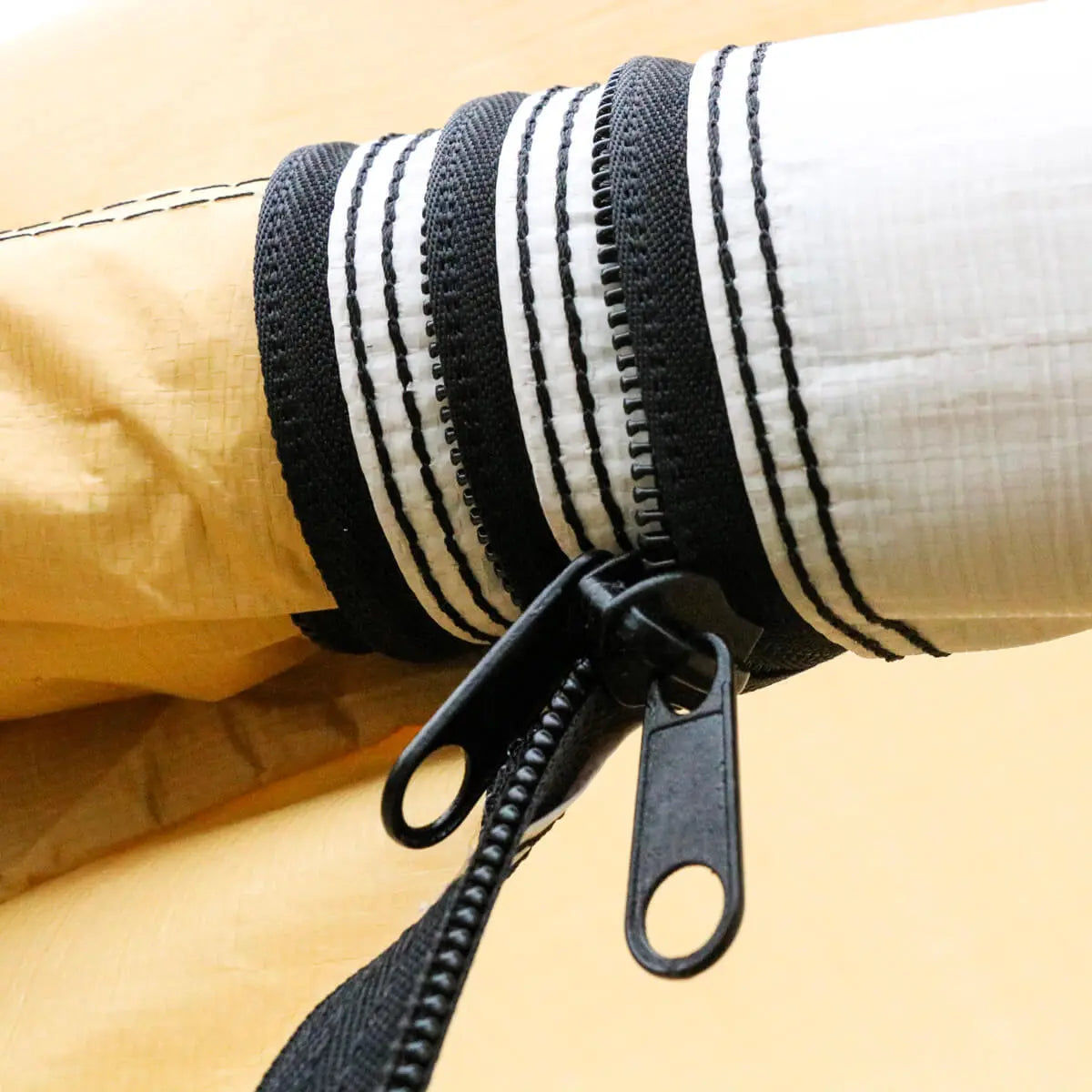

The front zipper door panel provides the primary access point, opening to 6 ft wide × 6.6 ft high. A solid back panel closes the rear of the structure. Side configuration is not specified — buyers requiring full enclosure on all four sides should review product specifications before purchase.

Anchoring Kit

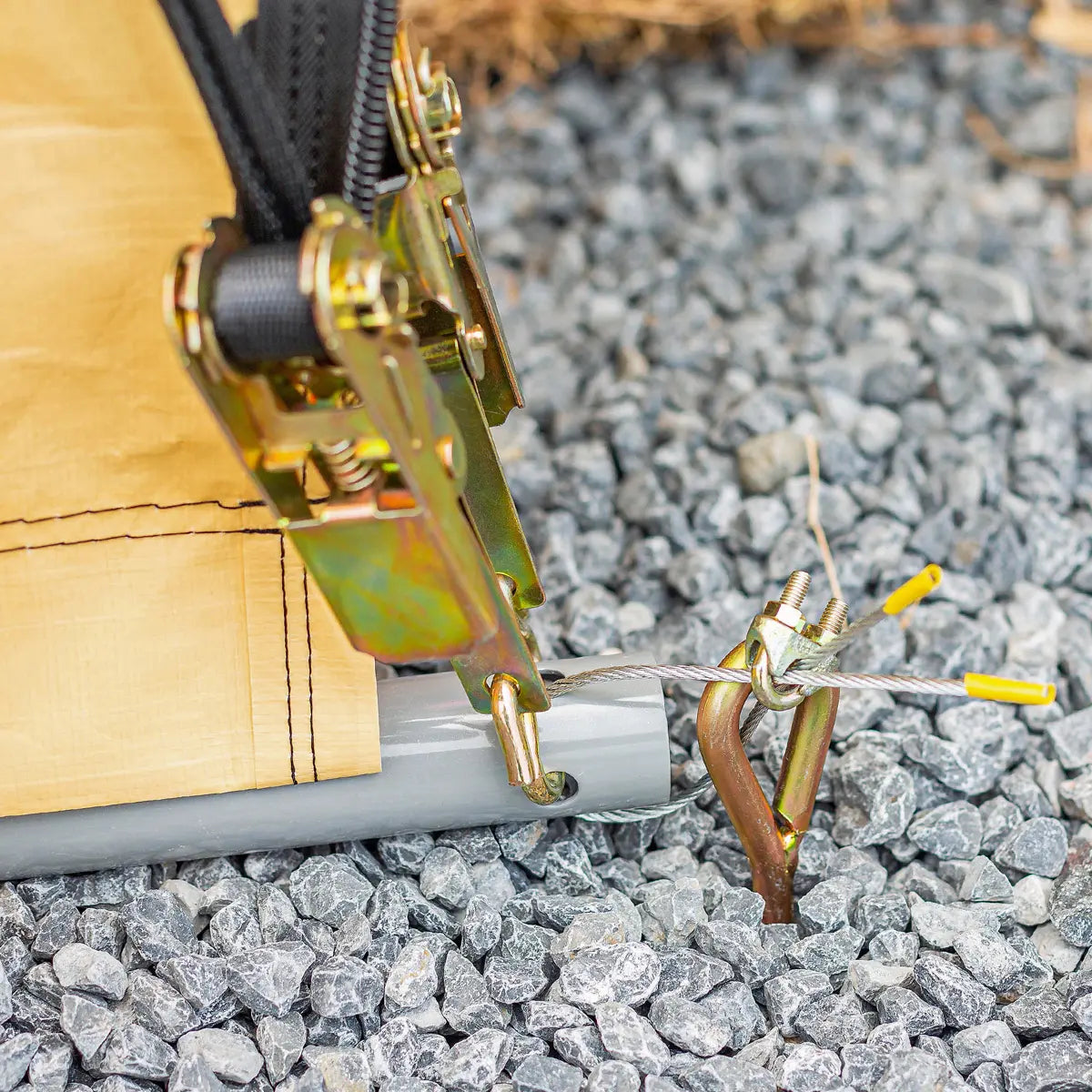

A complete ground anchoring kit is included: 4 spiral ground anchors (15 in), 4 wire rope cables (1 ft lengths), 4 cable clamps, and 8 ratchets. All anchoring hardware is included in the box.

Ideal For

- Covered vehicle and auto storage in a driveway or backyard — buyers should verify the 10 × 20 ft footprint (3055 × 6094 mm) and 6 ft × 6.6 ft door opening against vehicle dimensions before purchase. This product is not sold with vehicle fitment guarantees.
- Seasonal equipment storage: motorcycles, ATVs, lawn tractors, and similar outdoor equipment (buyer verifies dimensions).
- Yard and garden supply storage requiring a portable, non-permanent covered structure.
- Portable carport use where a fixed-structure installation is not desired.
